- Electronics manufacturing is often plagued by disjointed handoffs.
- Traditionally, you source bare boards from one vendor, chase components across multiple distributors, coordinate with an assembly house, and finally cross your fingers that the testing yield holds up.
- Every handoff between separate providers introduces unnecessary risk, production delays, and hidden logistical costs.
- This is why leading OEMs and sophisticated engineering teams are shifting toward end-to-end PCBA manufacturing solutions. This single-provider model eliminates silos by covering the entire product lifecycle—from initial PCB assembly contract manufacturing to comprehensive testing and inspection services, and finally, full system integration.
- When you work with a true end-to-end Electronic Manufacturing Services (EMS) partner, you stop managing a complex web of vendors and start focusing on scaling your business.
Ready to simplify your electronics supply chain?
What Does “End-to-End” Really Mean in PCBA Manufacturing?
Many contract manufacturers claim to offer “full service,” but few deliver true operational integration. A genuine end-to-end solution goes far beyond simple soldering; it must include:
Program Onboarding & Technical Review (DFx)
A professional partner begins with rigorous Design for Manufacturing (DFM) and Design for Testing (DFT) reviews. Identifying potential design flaws before the line starts running is the only way to maximize yield and prevent costly rework.

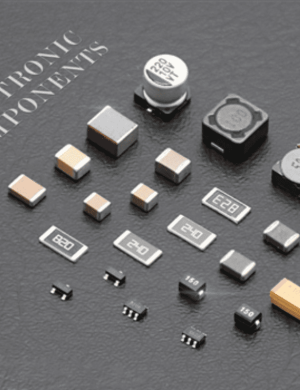

Supply Chain Management & Material Sourcing
Component shortages are the #1 bottleneck in modern electronics. An end-to-end provider takes full ownership of material planning. This includes proactive obsolescence management, life-cycle tracking, and the qualification of alternate parts to keep production moving.
Integrated Testing and Inspection Services
- Quality is not a final gate—it is a continuous loop. A true turnkey partner integrates high-end diagnostics, such as:
- 3D Automated Optical Inspection (AOI).
- X-ray Inspection (essential for verifying BGA and hidden solder joints).
- In-Circuit Testing (ICT) and custom Functional Testing (FCT).

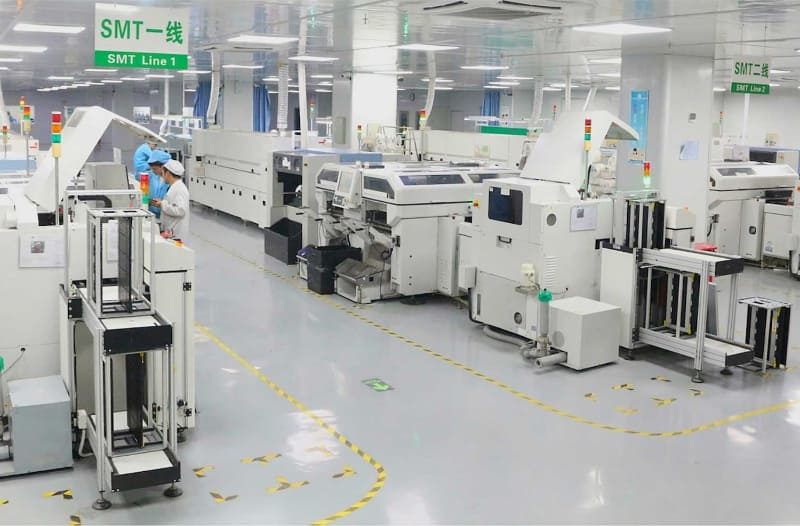

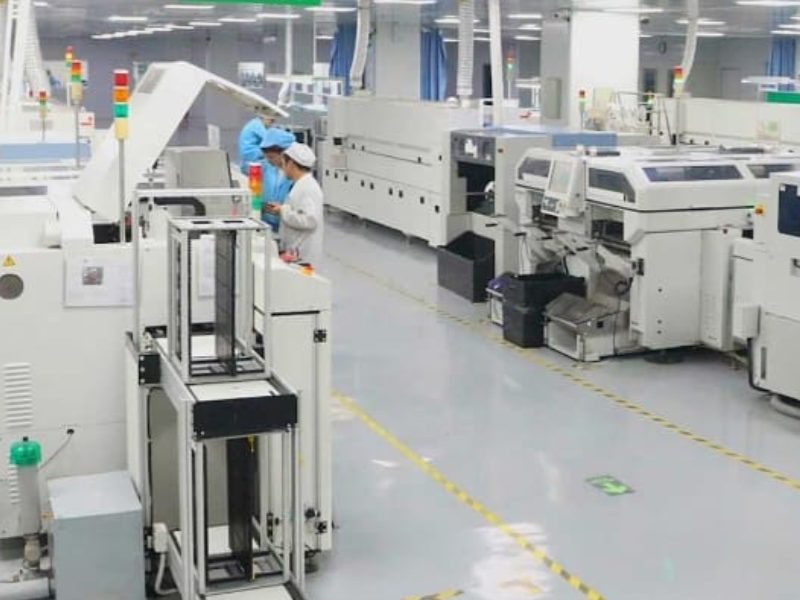

Advanced PCBA Contract Manufacturing
- This is the core of the operation. To meet industrial-grade requirements, the facility must offer:
- High-speed Surface Mount Technology (SMT) & Through-hole assembly.
- Precision handling for fine-pitch, BGA, and micro-BGA components.
- Process flexibility for both RoHS (lead-free) and leaded requirements.
- Strict adherence to IPC Class 2 and Class 3 standards.
- Cleanroom environments for mission-critical or medical-grade builds.
Environmental Protection & Ruggedization
For PCBA deployed in harsh environments, end-to-end solutions must offer specialized protective services like conformal coating and precision potting to ensure long-term durability.

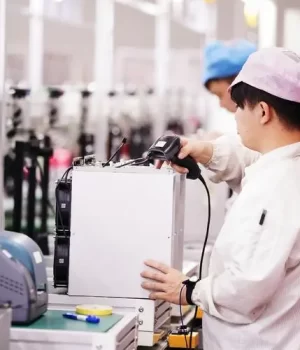

Box Build Final Assembly & System Integration
True integration means the assembly does not stop at the board. Box build final assembly involves managing enclosures, cable harnesses, firmware flashing, and final packaging—delivering a product that is “plug-and-play” for the end-user.
The Business Case for Turnkey Assembly Services
Are you still debating whether to split fabrication, assembly, and testing? Here is how the fragmented model compares to the integrated approach:
| Operational Factor | Fragmented Sourcing Model | End-to-End Integrated Model |
| Accountability | Finger-pointing and disputes between vendors | A single point of contact and responsibility |
| Lead Times | Multiple shipments and conflicting queues | Streamlined workflow with concurrent engineering |
| Quality Control | Inconsistent standards across facilities | Unified Quality Management System (QMS) |
| Risk Management | Your team manages every supply chain gap | Your EMS partner mitigates risks proactively |
| Total Cost (TCO) | Inflated by logistics and rework overhead | Optimized total cost of ownership |
Industries That Benefit Most from Turnkey Integration
End-to-end solutions are purpose-built for products that “must work the first time, every time.” Based on industry benchmarks, these sectors see the highest ROI from turnkey assembly services:
- Industrial & Commercial Equipment: Where reliability and 24/7 uptime are non-negotiable.
- LED Lighting & Smart Controls: Where mixed-technology boards demand extreme thermal and placement precision.
- Traffic & Transportation: Where long lifecycles require rigorous component traceability and ruggedization.
- Electronic Systems & Process Controls: Where complex configurations need flexible, scalable production lines.
“We don’t have the bandwidth to manage five different vendors. Our end-to-end partner handles everything from complex BGA placement to the final box build. That gives our team true engineering freedom.” > — Engineering Manager, Industrial Controls OEM
Quality is the Foundation, Not a Final Step
In an end-to-end workflow, quality control is a continuous, data-driven process. Your partner should provide:
In-process inspection at every critical milestone (paste, placement, and reflow).
High-resolution X-ray inspection to detect hidden anomalies like voids or “head-in-pillow” defects.
Functional testing simulating real-world conditions to guarantee field performance.
Frequently Asked Questions (FAQ)
In a consignment model, the customer is responsible for procuring and delivering all components and bare boards to the facility; the manufacturer only provides the labor for assembly. In contrast, turnkey assembly services mean the manufacturer manages the entire lifecycle: PCB fabrication, component global sourcing, assembly, and testing. Turnkey is the strategic choice for companies looking to eliminate logistical bottlenecks and transfer supply chain risk to the expert.
A professional end-to-end partner utilizes real-time supply chain monitoring tools to track the lifecycle of every part in your Bill of Materials (BOM). If a component is flagged as “End of Life” (EOL) or faces a sudden shortage, the manufacturer’s engineering team proactively suggests qualified alternates or minor circuit redesigns to ensure your production schedule remains uninterrupted.
Standard Automated Optical Inspection (AOI) is limited to line-of-sight verification. For modern components such as Ball Grid Arrays (BGA) or QFNs, the solder joints are located underneath the component body. X-ray inspection is the only way to “see through” these components to verify alignment and detect hidden defects like solder bridging, excessive voiding, or “head-in-pillow” issues that would otherwise lead to premature field failure.
Yes. One of the greatest advantages of an integrated model is the New Product Introduction (NPI) bridge. By using the same engineering team and equipment for prototypes that will be used for mass production, you ensure that “lessons learned” during the early stages are automatically baked into the high-volume run. This scaling capability ensures consistent reliability and shorter lead times.
To provide a comprehensive quote for end-to-end PCBA manufacturing solutions, a manufacturer typically requires a “Quote Package” containing:
- Gerber Files: In ODB++ or RS-274X format (including copper, solder mask, and silkscreen layers).
- Detailed BOM: Including manufacturer part numbers, descriptions, and reference designators.
- Centroid Data: Also known as the Pick-and-Place file (X, Y, Rotation, and Side).
- Test Plan: Specific parameters for functional testing (FCT) or in-circuit testing (ICT).
Box build final assembly is the final stage of system integration. It involves taking the populated PCBA and installing it into its final enclosure. This process includes complex cable harness routing, installing sub-assemblies (like fans or power supplies), firmware flashing, and final system-level functional verification. The result is a fully packaged product ready to be shipped directly to your end customers.
